INFANTRY ROTARY TARGET SYSTEMS

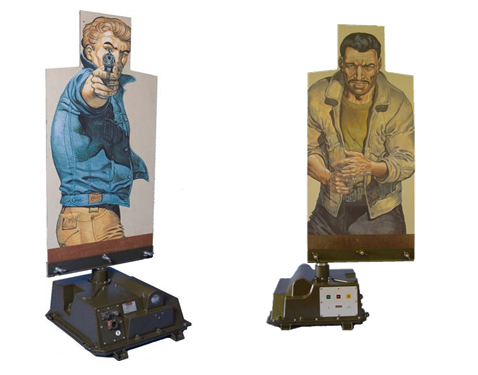

The TG 82-162 MC Turning Target is designed for stationary mains operation. This friend/foe turning target is ideal for tactical training for police, law enforcement and special forces. By using the Range Control System RCS the mechanism can be free programmed by the operator. The time of visibility for friend and foe can be set upon the training requirement. Some standard functions are pre-programmed. Due to the processor built-in the electronic customized changes to the functions can be made as required. A bank of TG 82-162 MC Turning Targets can be directly controlled or pre-programmed and can be operated singly, in pre-selected groups or simultaneously with all other mechanisms by the Range Control System (RCS). The throwing of the target board is conducted by an electronic controlled drive motor. The housing is made of cast aluminium and all components are of stainless material or treated so that neither corrosion nor rust can reduce the life expectancy of the mechanism.
The latest technology of sensor electronic assure optimal hit information. Reactions due to near-misses, muzzle blast, wind, debris and splinters are filtered and prevented.
| Max Target Size | 450x1200mm |
| Max Target Weight (with target holder) | 3kg |
| Wind Load | 55km/h |
| Rotation Time (with full size target) | <0.7 sec (180º without wind) |
| Hit Detection | Contact Hit Sensor 15 level sensitivity |
| Hit Frequency | 1200 rounds/min |
| Protection Height (against direct hits) | 310mm |
| Power | Mains 85-264 VAC 50/60 Hz |
| Operating Temperature | Standard -10ºC to +50ºC extendable -30ºC to +60ºC |
| Storage Temperature | Standard -20ºC to +70ºC extendable -45ºC to +70ºC |
| Relative Humidity | 98% |
| Enclosure Rating | IP 67 |
| Weight Mechanism without target holder | 15kg |
| Weight Target Holder | 1kg |
| Target Illumination (optional) | Built-in lights simulating moonlight, hitson target, retaliatory fire, brightness asjustable in 15 steps |
